EG180

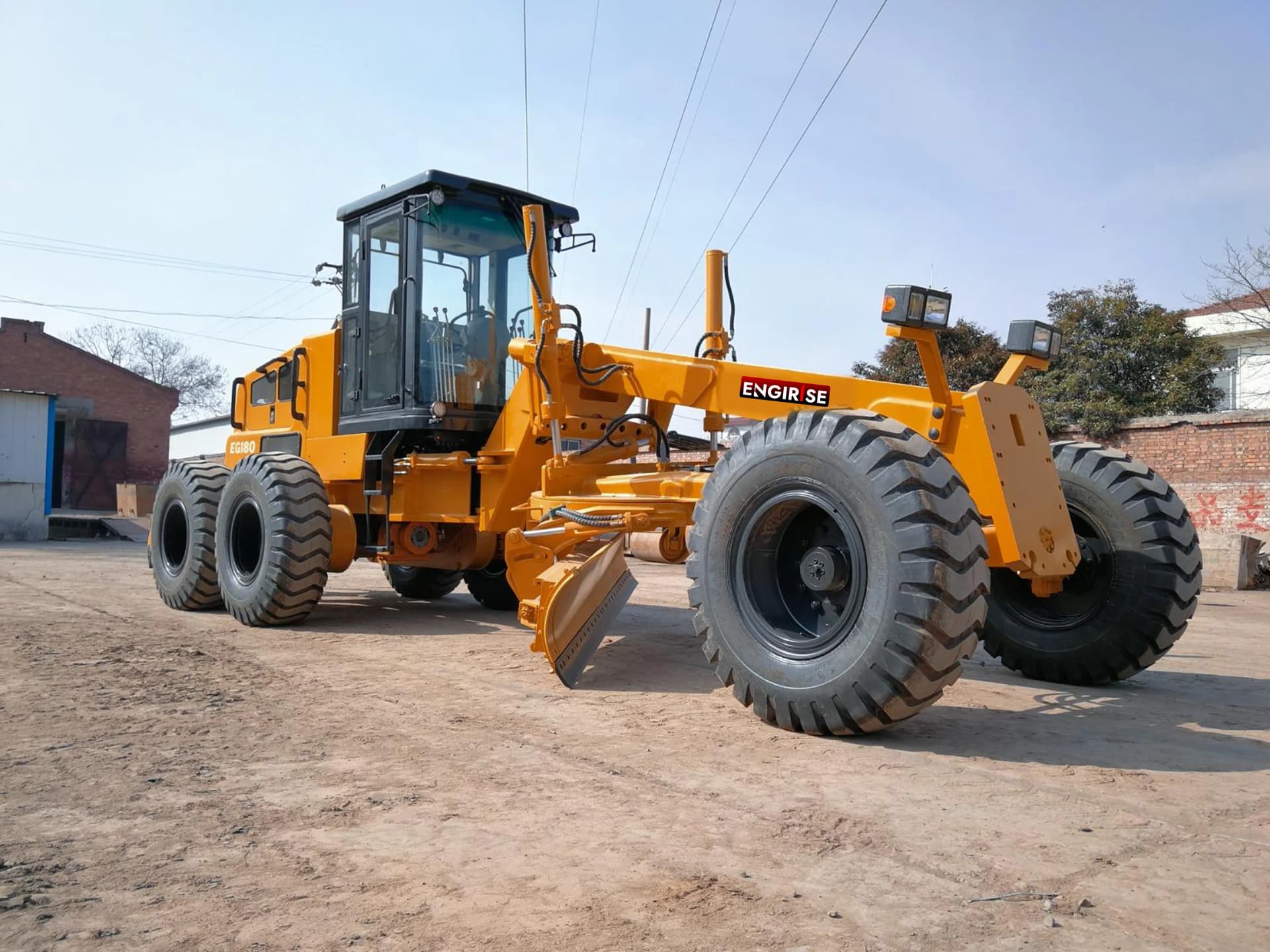

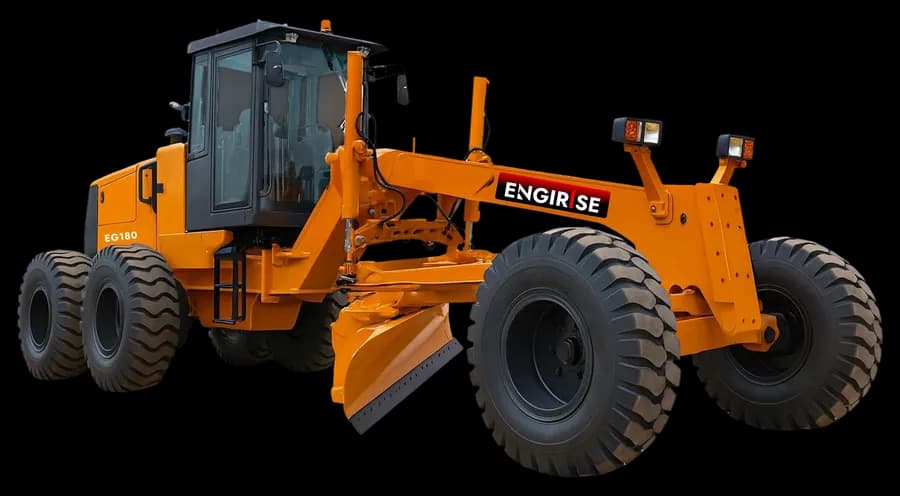

The Engirise EG180 is a 16-ton motor grader built for precision grading across infrastructure projects. It's powered by a 132kW engine delivering 132kW and equipped with a 3965mm wide blade. For road construction, site leveling, and maintenance work on Gulf highways - this is the machine to use.
Key Benefits
- 24/7 Rapid Support
- Genuine Spare Parts
- Gulf-Ready Engineering
Precision Grade. Every Pass.
The EG180 combines premium-grade transmission with flexible hydraulic controls. With an operating weight of 16,000kg, it maintains stability during heavy cuts. For contractors who need accurate grading day after day, this machine delivers.
Highway construction and maintenance across Abu Dhabi
Large site leveling for Dubai development projects
Infrastructure corridor preparation in the Northern Emirates
Engineered for Road Building
The EG180 integrates international components into a reliable grading package. From its cutting-edge torque converter to its HUSCO hydraulic controls, every system is chosen for performance. Below are its core engineering details.
Diesel Power with Trusted OEM Options
01
Description
Internally cooled supercharged diesel engine for strong power and reliable performance. Choose from multiple premium OEM configurations, well-trusted in the Middle East.
German-Engineered Transmission
02
Description
Torque converter and power-shift gearbox from Germany. They are integrated into a single unit. Six forward gears and three reverse gears are provided. The machine works efficiently at grading speeds and travels fast between sites.
Driving Axle with Anti-Slip Differential
03
Description
Integrated free-wheel anti-slip differential for improved traction. A strong roller chain drives the tandem case. The EG180 keeps working with confidence even in slippery conditions.
Pendulum-Arm Circle Drive
04
Description
The grader's working mechanism uses a pendulum-arm connecting rod structure. A standard feature is the free-maintenance rolling-plate circle device. This enables smooth blade rotation without frequent servicing. Uptime is maximized.
TECHNICAL SPECIFICATIONS
EG180 - Discover the Power Within
The numbers show a balanced grading machine. 16,000kg operating weight. 38.2km/h top speed. 7800mm turning radius for maneuverability. The table below lays out every specification — weights, speeds, dimensions, and hydraulic capacity.
Why Choose this Machine?
Stable. Precise. Productive.
Traction When You Need It
Free-wheel anti-slip differential and strong roller chain drive maintain grip. On wet ground or loose material, the EG180 keeps pulling. Grading continues. Schedules stay on track.
Genuine Spare Parts – UAE Stock
Speed Power maintains Middle East stockpiles of authentic EG180 parts. We stock engine filters, hydraulic seals, HUSCO valve components, and drivetrain parts. When a machine goes down, we dispatch within hours to get you back on track.
Precision Blade Control
Double cylinders at the blade tip adjust cutting angle based on soil. Imported hydraulic equalizing valve keeps blade lift smooth. Operators achieve accurate grades pass after pass. Rework is reduced. Material is saved.
