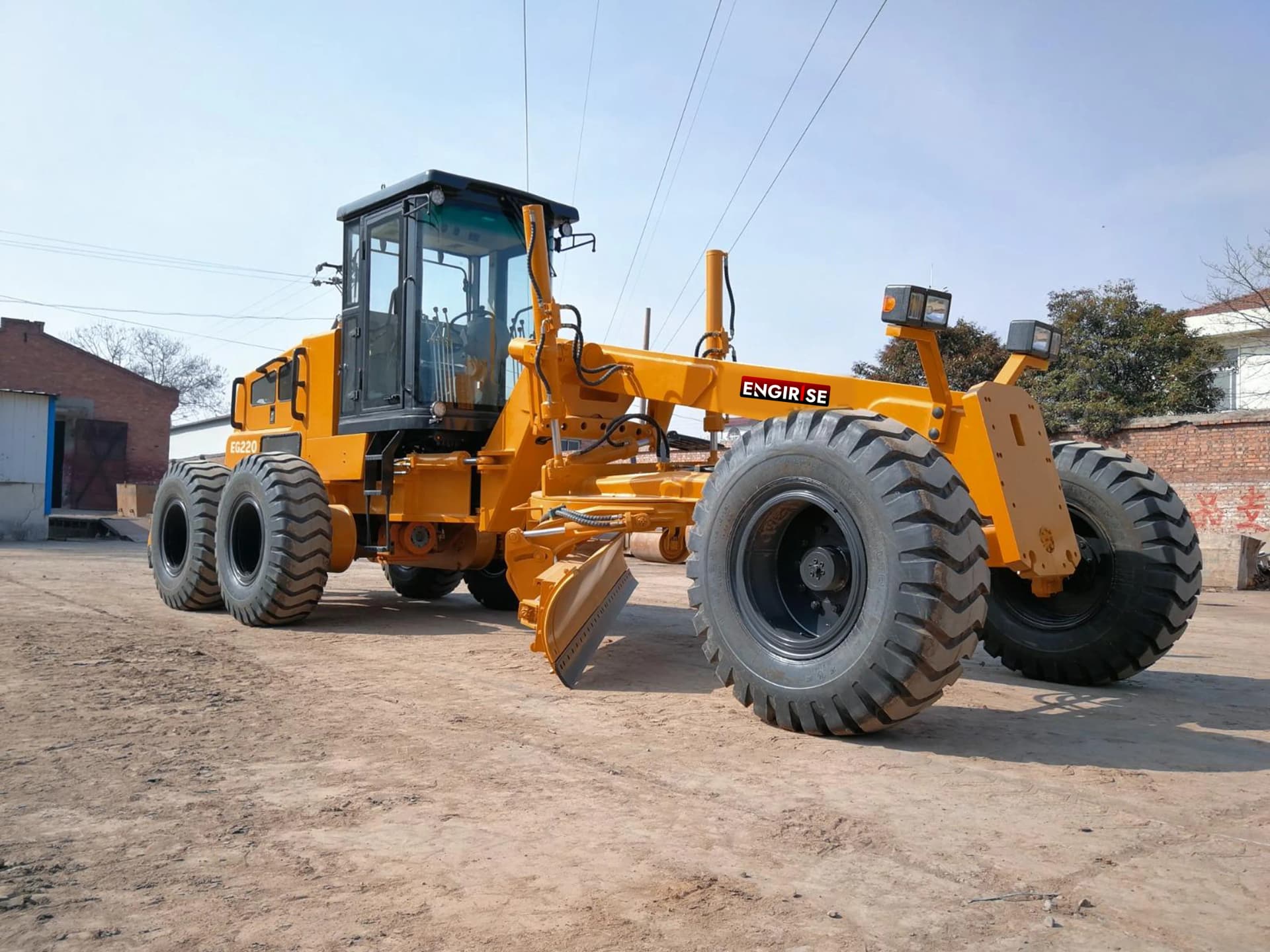

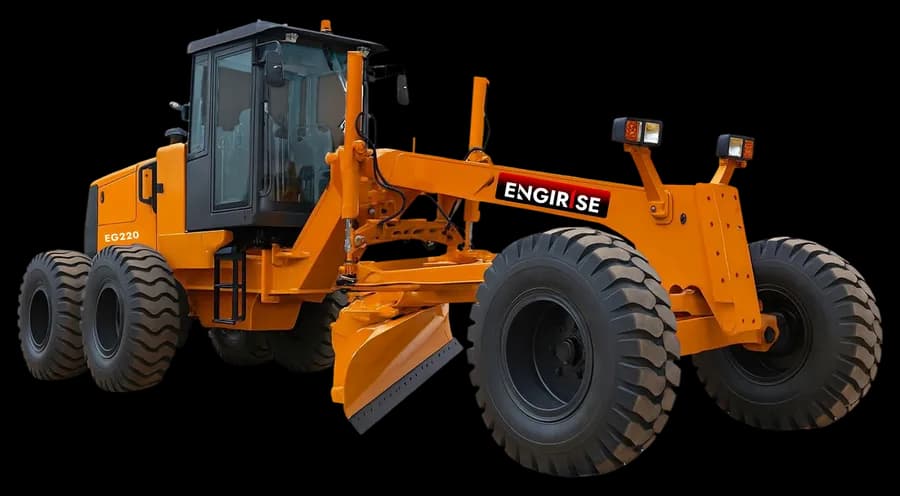

EG220
The Engirise EG220 is a 16.9-ton motor grader built for heavy grading across Middle Eastern projects. It's powered by a 160kW engine and equipped with a 3965mm blade, This machine is building roads, levelling sites, performing maintenance work - and driving real development in Dubai and beyond.
Key Benefits
- 24/7 Rapid Support
- Genuine Spare Parts
- Gulf-Ready Engineering
More Power. Same Precision.
The EG220 shares the same German drivetrain and hydraulic system as the EG180. But it packs more power — 160kW against 132kW. It carries more weight - 16,900kg against 16,000kg. For contractors who need extra muscle for tougher cuts, this is the machine.
Heavy highway construction across Abu Dhabi and Dubai
Large-scale site levelling for major development projects
Mining road maintenance and heavy earthworks applications
Heavier. Stronger. Same Footprint.
The EG220 delivers more power and weight than the EG180 while sharing the same proven systems. From its German transmission to its HUSCO hydraulics, everything is built for tougher work. Get heavier grading for highway construction and large-scale site development.
160kW Engine Power
01
Description
Internally cooled supercharged diesel engine producing 160kW power. With a world-renowned OEM, this engine can handle heavier cuts and tougher materials than the EG180.
Boxed Oscillated Steering Front Axle
02
Description
The front axle is boxed and oscillated with leaned wheels. It absorbs ground irregularities while maintaining steering control. Operator comfort improves while blade control stays accurate.
Driving Axle with Anti-Slip Differential
03
Description
Integrated free-wheel anti-slip differential on the drivign axle – for better traction. A strong roller chain drives the tandem case. Even on slippery surfaces and tricky conditions, the EG220 continues to grade.
HUSCO Hydraulic Control System
04
Description
Two sets of HUSCO five-way control valves manage hydraulic functions. An imported hydraulic equalizing valve controls blade lifting. The system was first designed for in-board application. Response is precise and reliable.
TECHNICAL SPECIFICATIONS
EG220 - Discover the Power Within
16,900kg operating weight. 160kW power. 7800mm turning radius – the numbers tell the story. The table below lays out every specification — weights, speeds, dimensions, and hydraulic capacity. See how the extra power changes what this machine can do.
Why Choose this Machine?
More Bite. Same Precision.
160kW for Tougher Cuts
The EG220's premium engine delivers 160kW — 28kW more than the EG180. When material gets hard or cuts get deep, this extra power matters. Contractors move more material per pass. Projects finish faster.
Heavier Machine, Better Penetration
At 16,900kg operating weight, the EG220 carries 900kg more than the EG180. Front axle load is 5820kg for better blade penetration. The blade bites deeper on first pass. Secondary passes are reduced.
Genuine Spare Parts – UAE Stock
Speed Power maintains OEM-standard parts for EG220 models within the region. We supply engine filters, hydraulic seals, HUSCO valve components, and drivetrain parts. When a machine goes down, we move fast to get parts to your site.
